HONGYU JMC 23 M AERIAL WORK PLATFORM
Vehicle-mounted access for lighting and infrastructure maintenance.
1 / 4Vehicle range: Hongyu

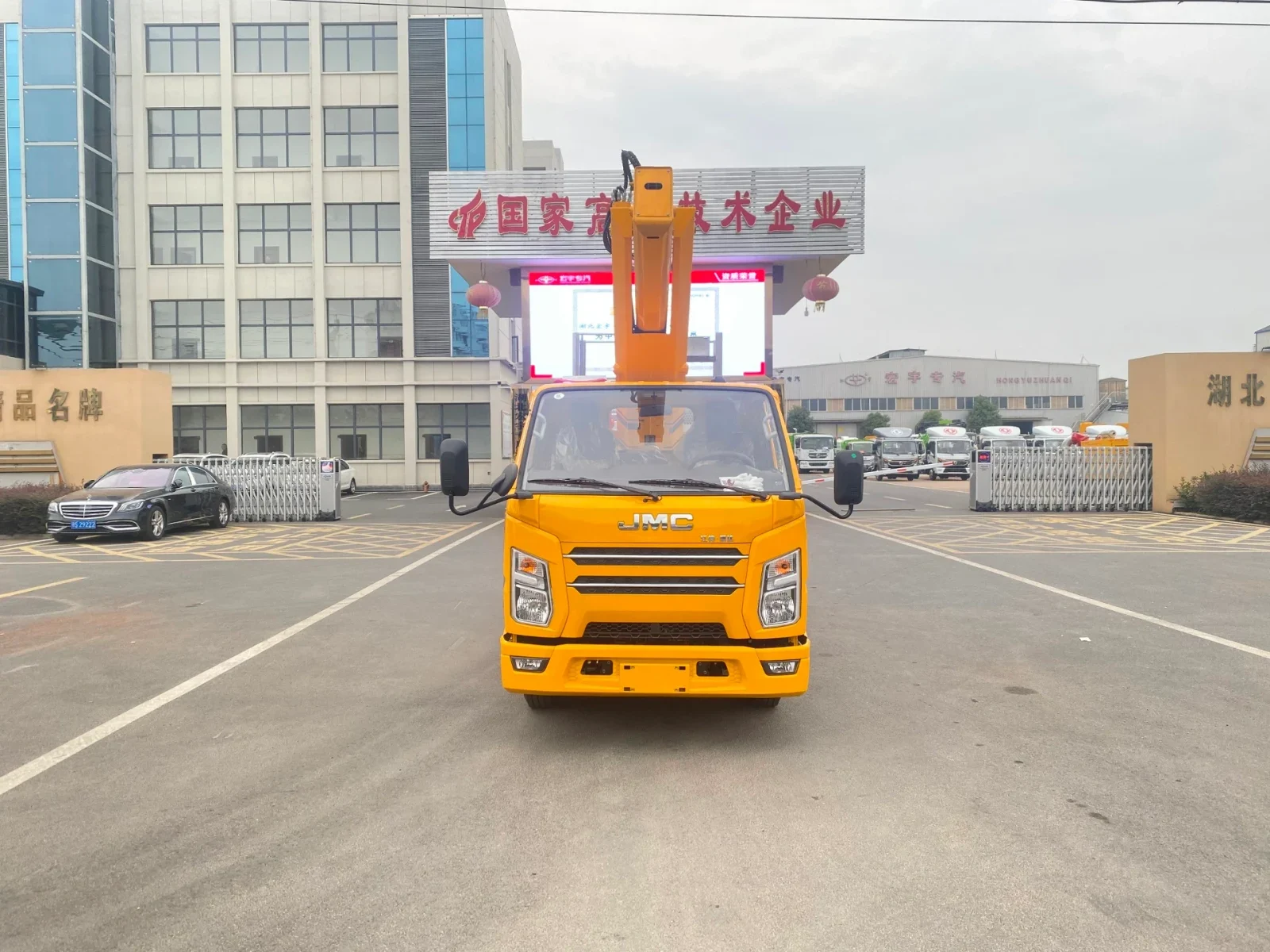

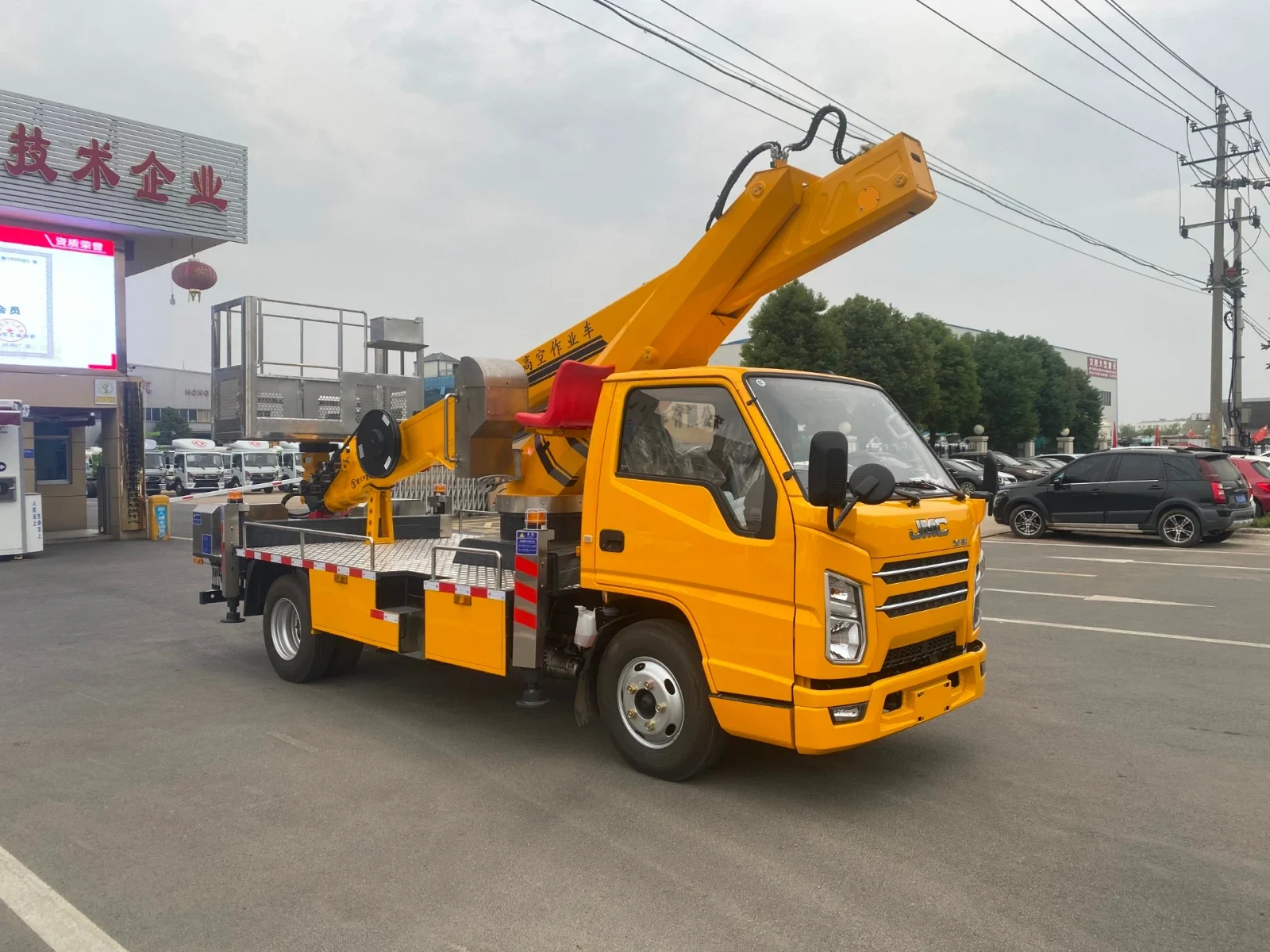

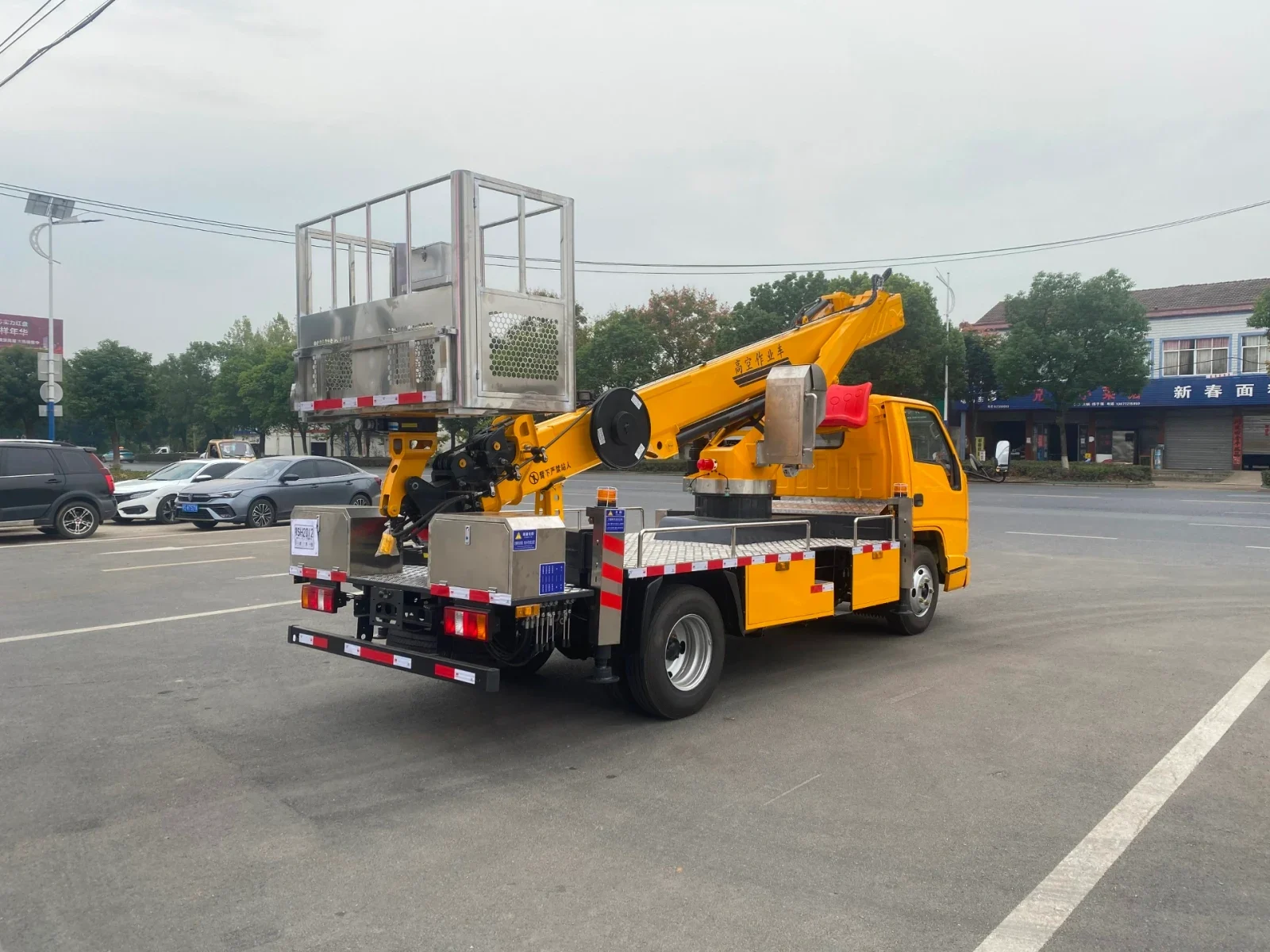

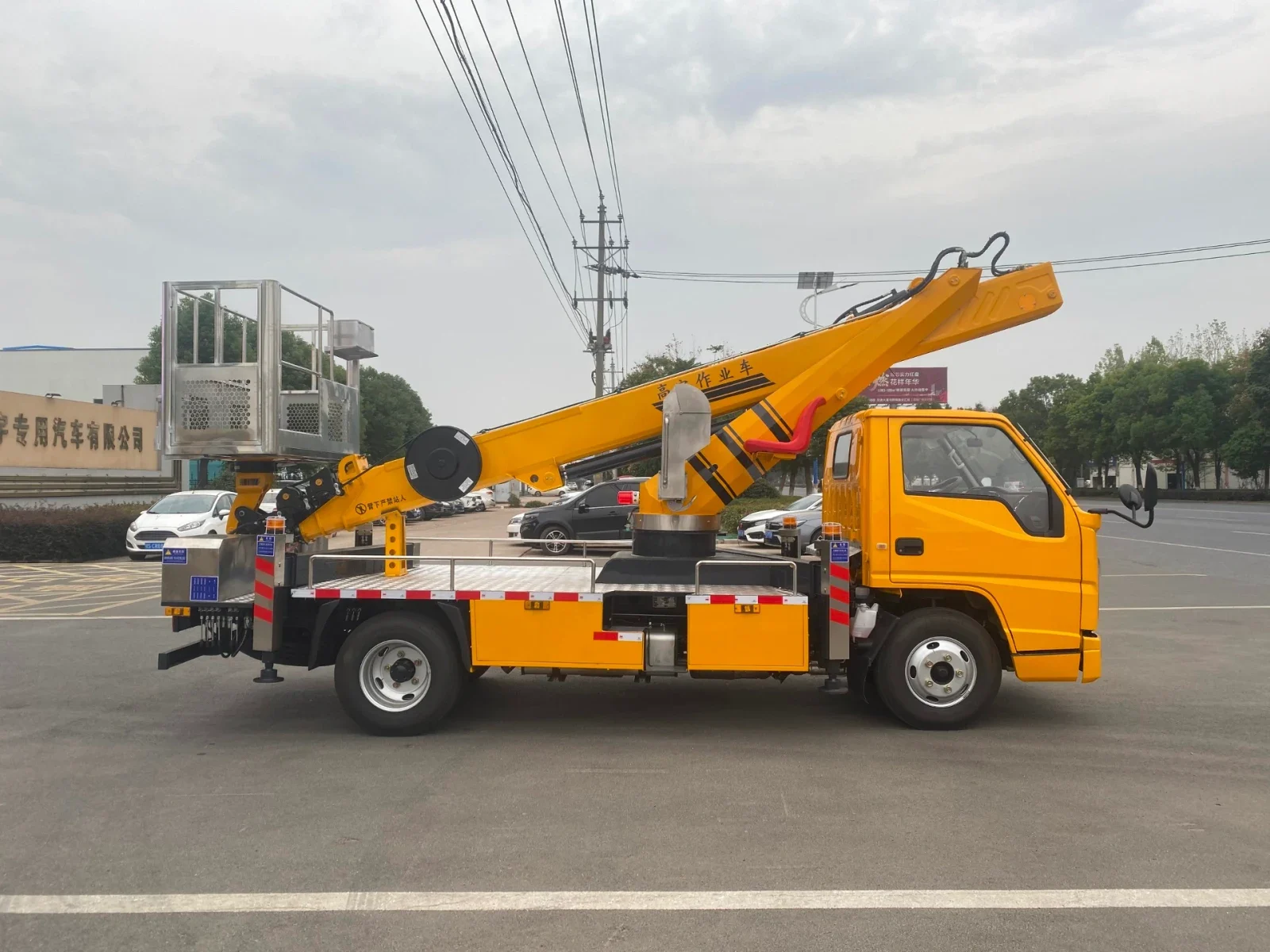

Manufacturer photos · request the exact quoted build
Your work.
Your specification.
Street lighting, building maintenance and communications work often require a vehicle that can travel between several access points during one shift. This JMC platform reference lists a 23 m maximum working height. The useful working position depends on the distance from the parking location to the task, as well as the height of the task itself.
- Vehicle-mounted telescopic access platform
- Stabiliser-equipped working arrangement
- Published working-envelope reference
- Compact road-going JMC chassis
Configuration overview.
Photographs show vehicles from the manufacturer’s range. Confirm the exact chassis, model code, capacity and operating limits for the vehicle quoted to you.
- Chassis
- JMC Shunda
- Wheelbase
- 3,360 mm
- Reference dimensions
- 5,995 × 2,050 × 2,950 mm
- Gross vehicle mass
- 4,495 kg
- Platform rated load
- 200 kg
- Maximum working height
- 23 m
- Maximum working radius
- 13.5 m
- Height at maximum radius
- 4.5 m
- Radius at maximum height
- 3.9 m
Equipment and specification planning
The maximum height and maximum radius are not available at the same boom position. The supplier lists a 3.9 m radius at maximum height and a 4.5 m height at maximum radius. Compare the full working envelope and platform load chart. The 200 kg rating includes the load specified by the manufacturer; tools and personnel must be considered in the operating plan.
Prepare your enquiry
Send the task height, horizontal setback, access dimensions and the space available for stabilisers. Ask for the proposed platform dimensions, emergency lowering arrangement and equipment inspection documents. Confirm the exact build and working envelope before matching the vehicle to a contract.
Service and handover
Request a schedule for boom, stabiliser, hose and control inspections. Arrange operator familiarisation for the supplied platform and verify access to local service parts. Acceptance should include the manufacturer’s prescribed function checks and documentation.
Configuration and delivery
The figures describe the published reference, not every configuration. Final chassis, body equipment, permitted payload, destination requirements, delivery schedule and price are confirmed in a written quotation.
Before you enquire.
How do I confirm the exact vehicle?
Request the chassis and complete vehicle model codes, specification sheet, current photographs and written equipment list. Listing images do not confirm stock or approval for your destination country.
Does the configurator show this exact vehicle?
The configurator is a separate three-view concept preview. It does not reproduce every manufacturer vehicle. Use this gallery and the specification supplied with your quotation to review the actual build.
What about warranty, spare parts and delivery?
Confirm chassis and body warranty separately, including exclusions and the responsible service provider. Request a spare-parts list, operating manual, inspection plan and shipping scope. Delivery dates and support terms are agreed in the written quotation.
Does the estimate include every cost?
The separate configurator uses illustrative USD amounts, not prices for this listing. Request a written quotation specifying equipment, taxes and delivery costs.
