Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Chassis | Dongfeng |
| Drive configuration | 4×2 |
| Container volume | 5 m³ |
| Wheelbase | 3,300 mm |
| Container material | 4 mm carbon steel |
| Overall dimensions | 5,895 × 2,045 × 2,210 mm |
| Hook mechanism | L-type hydraulic hook |

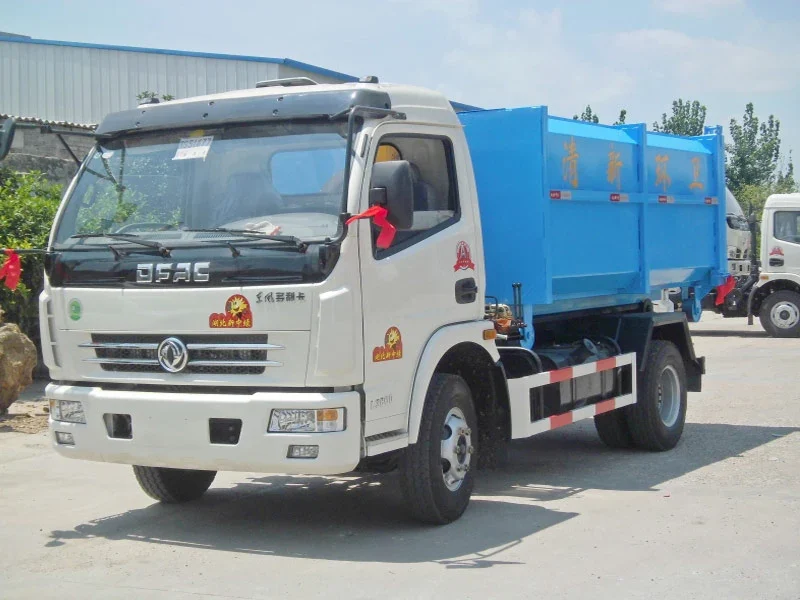

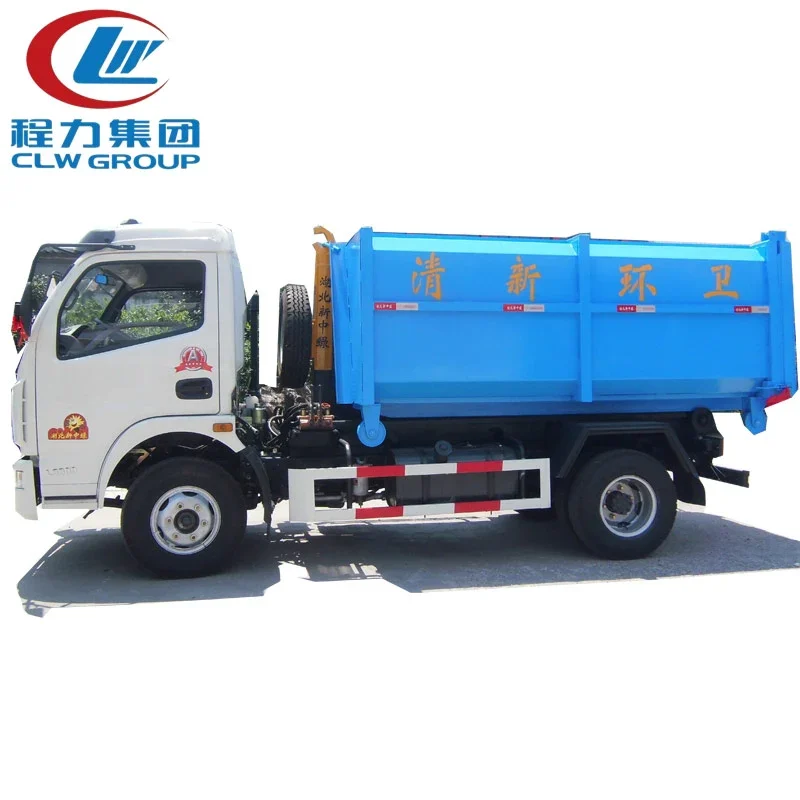

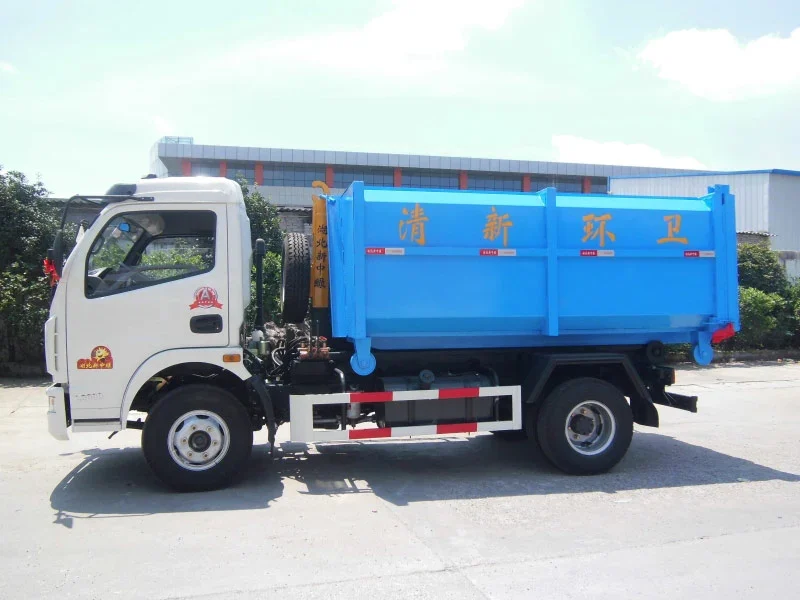

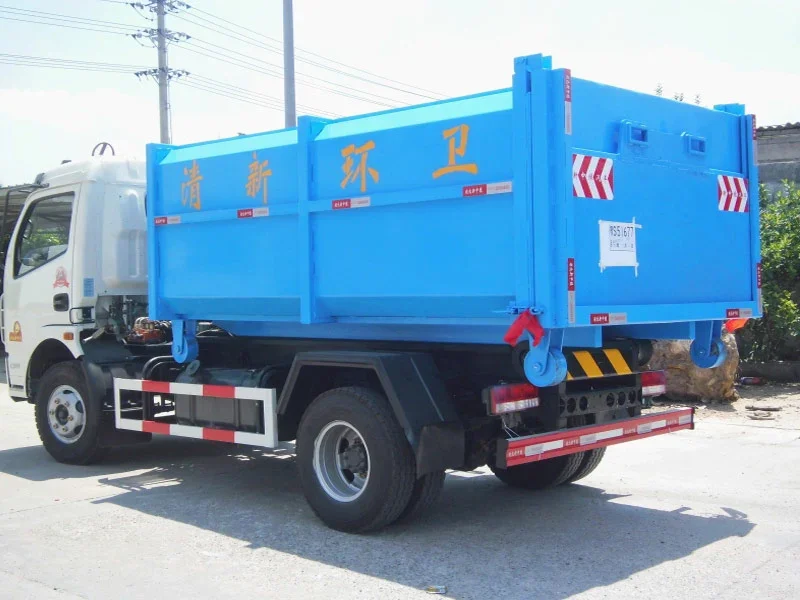

About the CLW Dongfeng 5 m³ Hook Loader
This Dongfeng hook-loader reference is built around a detachable 5 m³ waste container. A hydraulic hook mechanism moves the container between the ground and chassis, allowing one vehicle to serve several collection points.
Applications and operating scenarios
A hook-loader collection system uses detachable containers that can remain at working locations. One vehicle can be planned around a network of compatible containers and collection points. The container exchange area and the type of material determine the required operating arrangement.
How to read the specifications
A matching container volume does not establish hook compatibility. Hook height, rails, container length and loaded mass need to match the specified mechanism and chassis. Review the listed dimensions and tank-free body arrangement as reference information for the exact build.
Selection and quotation checklist
Provide container drawings and loaded-mass requirements before selecting the vehicle. Ask for the hook mechanism's capacity and compatibility documentation. Confirm loading space, vehicle restraints and the number of containers supplied in the proposal.
Reference scope
This guide uses the published Chengli / CLW vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
