Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Chassis | Foton Xiaoka Star 3 |
| Body volume | 5.8 m³ |
| Wheelbase | 2,850 mm |
| Body material | Q355 steel |
| Hopper volume | 330 L |
| Rear leachate tank | 180 L |
| Listed cycle time | 18 s |
| Compatible bin sizes | 120 / 240 / 660 L |

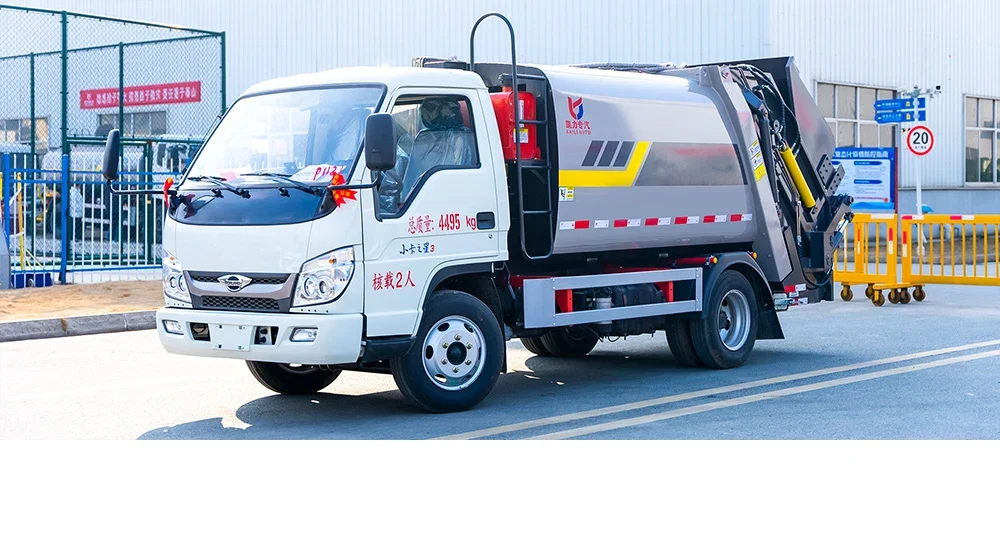

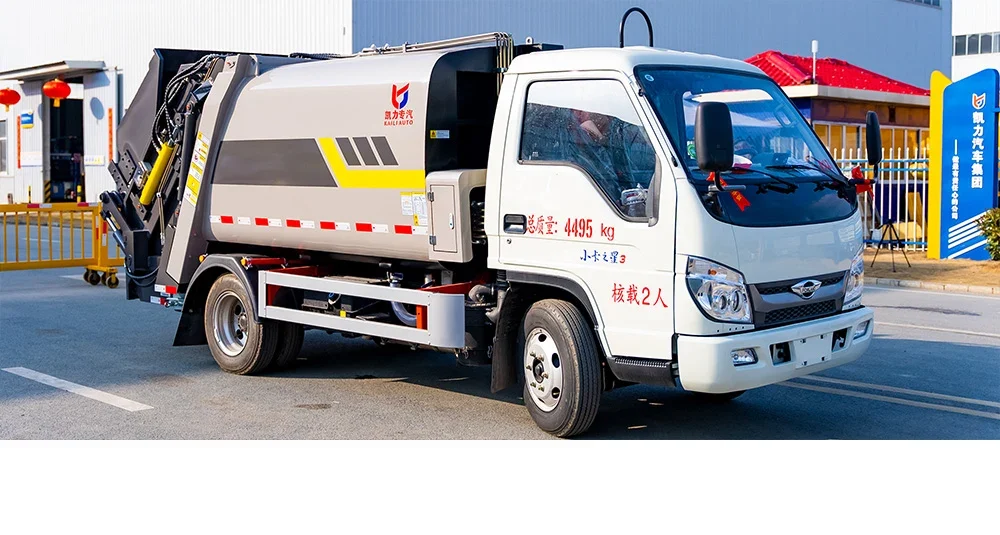

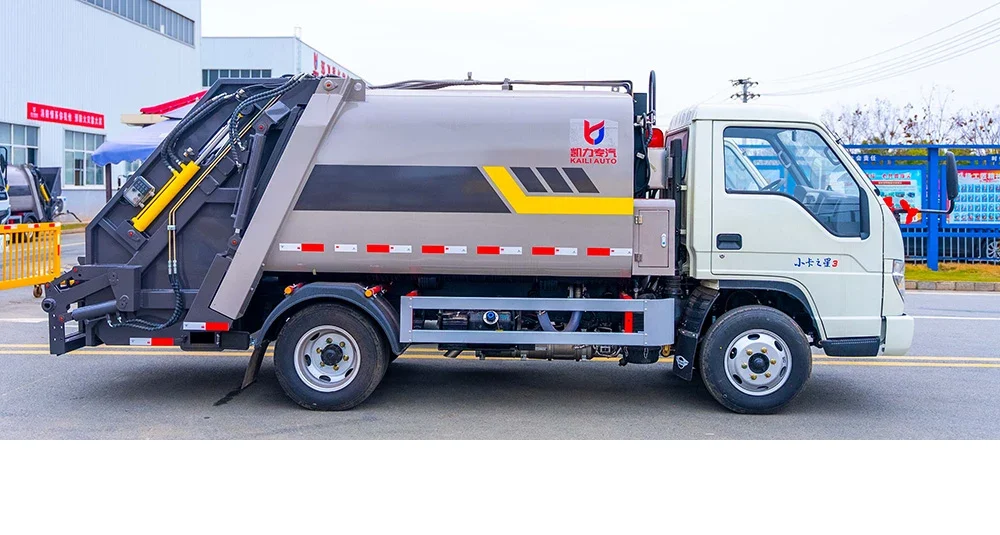

About the Kaili Foton 5.8 m³ Garbage Compactor
The Foton Xiaoka Star 3 reference pairs a 5.8 m³ compaction body with a short-wheelbase chassis. Rear loading, a separate leachate tank and multiple control methods support organised collection from compatible municipal bins.
Applications and operating scenarios
This short-wheelbase compactor reference supports municipal collection routes using compatible wheeled bins. A useful brief identifies the bin mix and the number of collection stops before selecting a loading arrangement. Access around parked vehicles and unloading arrangements also influence the choice.
How to read the specifications
Body and hopper volumes describe separate parts of the collection system. Bin compatibility needs the actual lifting interface to be confirmed, while a listed cycle time depends on the reference operating conditions. None of these figures alone establishes a route's daily collection capacity.
Selection and quotation checklist
Provide the bin standards, waste types, route access and disposal location. Request the exact rear-lifting equipment, leachate arrangement and controls included in the build. Check the completed vehicle's payload and axle documentation before setting a loading plan.
Reference scope
This guide uses the published Kaili vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
