Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Vehicle model | EQ5252GJBT |
| Drive configuration | 6×4 |
| Listed mixing volume | 10 m³ |
| Gross vehicle mass | 25,000 kg |
| Engine model | ISLe375 40 |
| Engine power | 276 kW |
| Engine displacement | 8,900 mL |

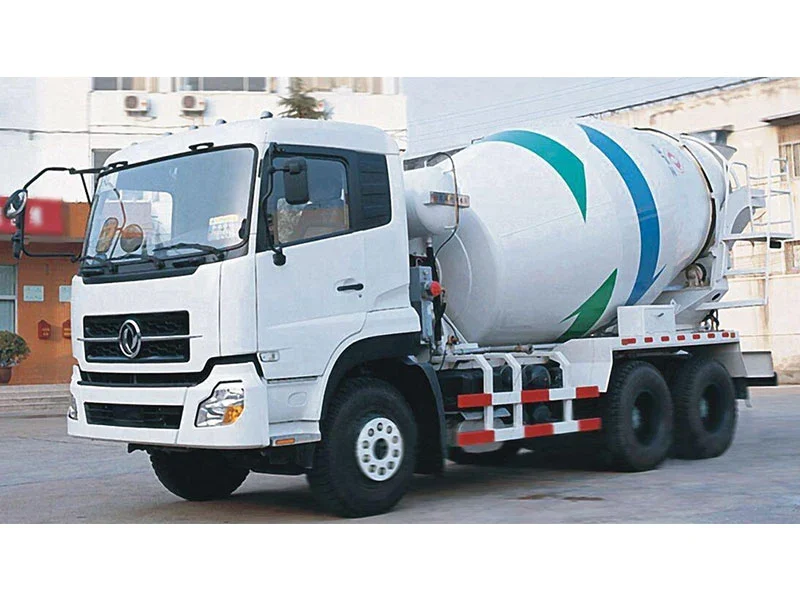

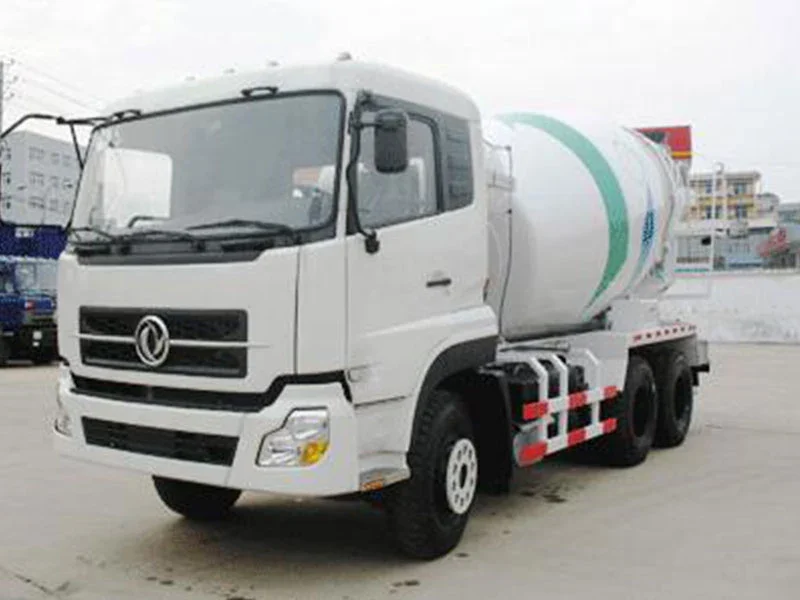

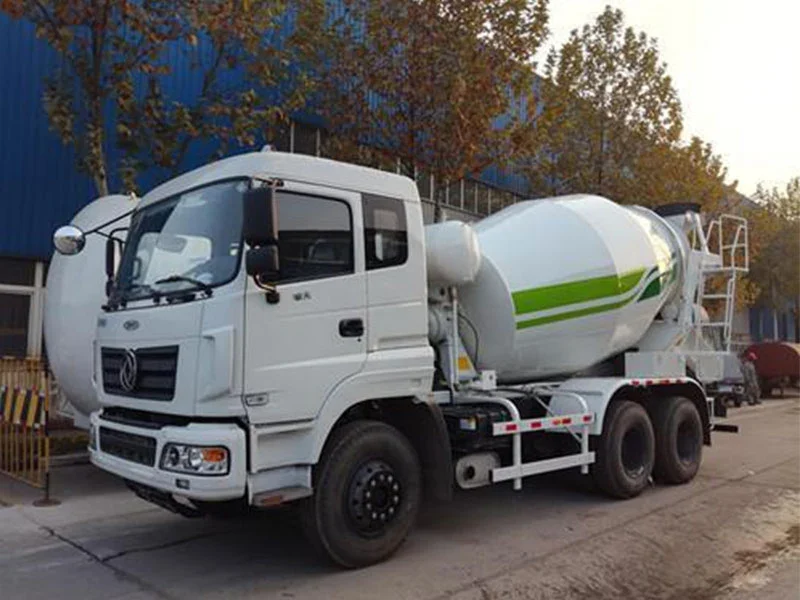

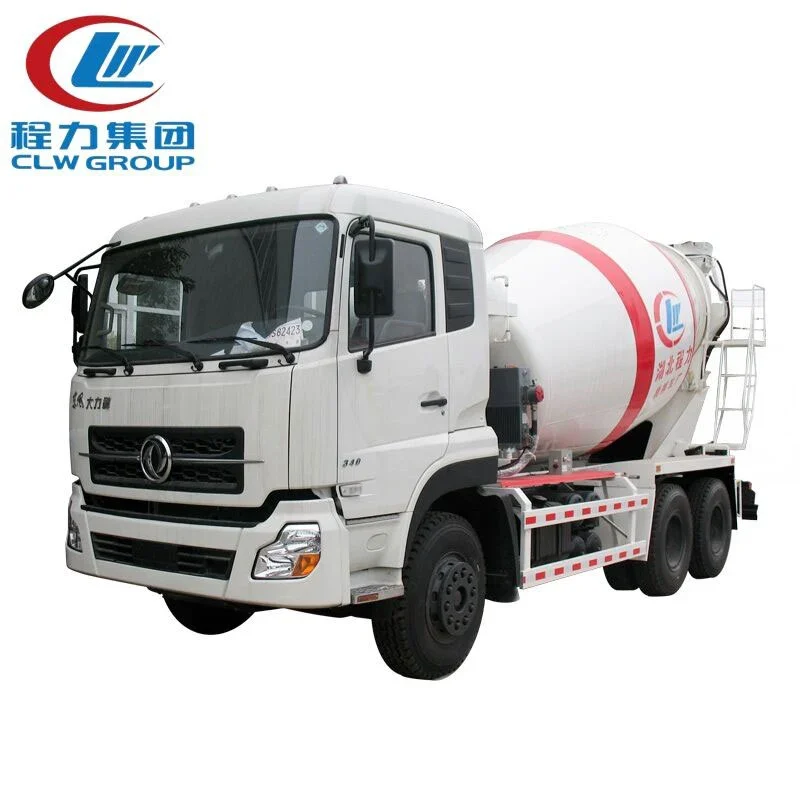

About the CLW Dongfeng 6×4 Concrete Mixer
A Dongfeng 6×4 mixer with a rotating drum for transporting ready-mixed concrete. The reference specification lists a 10 m³ mixing volume; actual dispatch loading must also satisfy the vehicle’s approved mass and axle limits.
Applications and operating scenarios
This mixer reference supports transport planning between a batching location and concrete-delivery sites. Route timing, site entrances and discharge positioning influence the vehicle discussion. Define the expected batch and the receiving operation before comparing chassis and mixing equipment.
How to read the specifications
The published mixing volume is distinct from the mass of concrete that may be legally carried. The completed vehicle's gross and axle limits remain part of the loading review. Confirm that the referenced drum specification corresponds to the chassis and equipment in the quotation.
Selection and quotation checklist
Provide the intended batch size, route and discharge arrangement. Request the drum specification, drive-system details and service-water equipment. Agree current vehicle evidence and the performance checks to be completed at handover.
Reference scope
This guide uses the published Chengli / CLW vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
