Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Chassis model | EQ1060TJ20D3 |
| Drive configuration | 4×2 |
| Listed rated payload | 5,000 kg |
| Listed gross vehicle mass | 8,050 kg |
| Listed curb weight | 3,050 kg |
| Engine model | CY4102-C3F |
| Engine power | 70 kW / 95 hp |

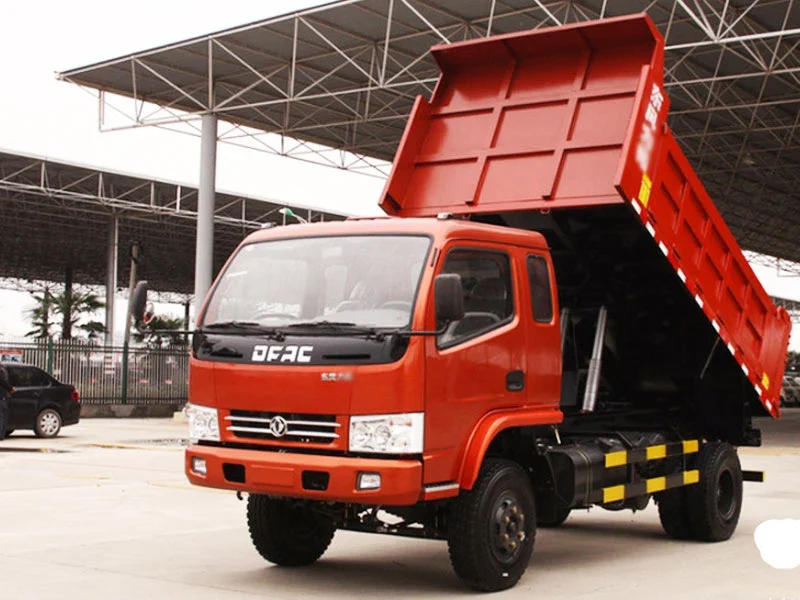

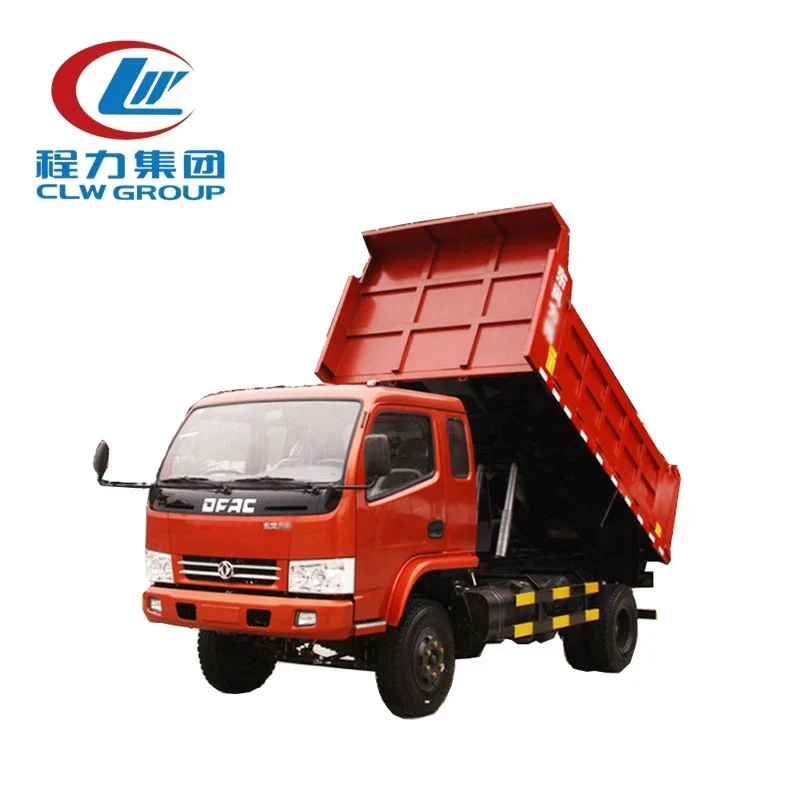

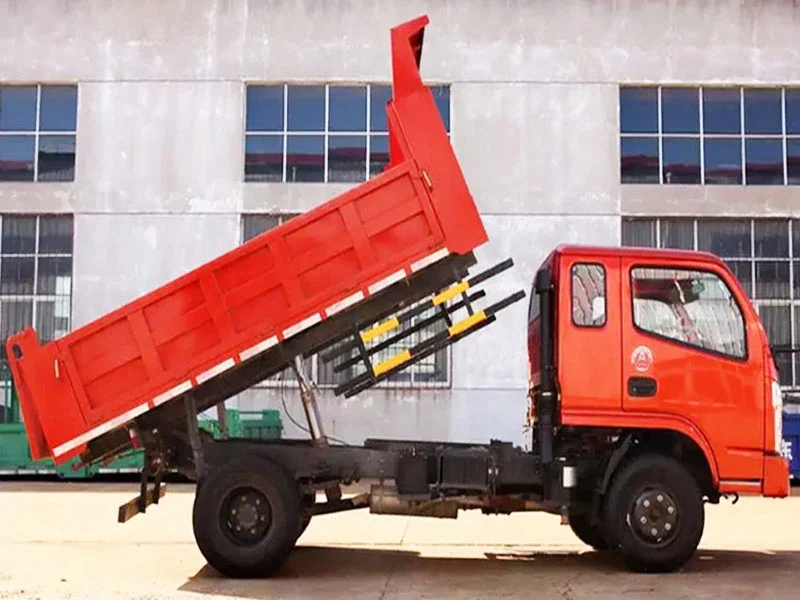

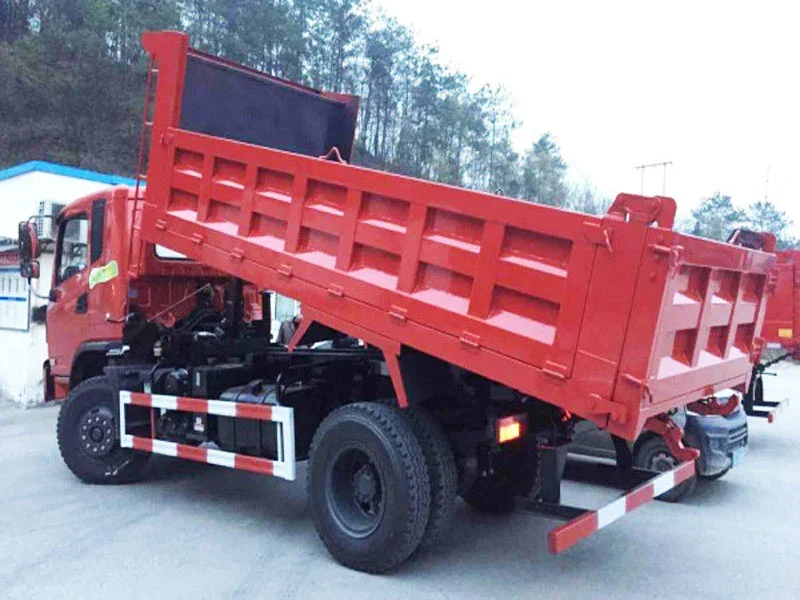

About the CLW Dongfeng 5 t Tipper
This compact Dongfeng tipper is listed with a 5,000 kg rated payload and a diesel chassis. Its open tipping body supports bulk-material transport where a truck must unload directly at the working location.
Applications and operating scenarios
This compact tipper is relevant to short-haul movement of bulk materials where unloading takes place at the delivery location. Potential enquiries include landscaping supplies and construction support. Loading equipment, material density and the receiving site's layout are more useful starting points than body appearance alone.
How to read the specifications
The listed rated payload is a mass figure, while body volume would be a separate measurement. Dense and light materials can occupy the same space with different loads. Read the reference gross and curb masses alongside the final body specification and vehicle documentation.
Selection and quotation checklist
State the material, expected load mass, loading method and access conditions. Request the body dimensions, tipping system and approved operating limits for the quoted configuration. A reference payload should not be treated as permission to load every proposed body to that value.
Reference scope
This guide uses the published Chengli / CLW vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
