Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Chassis | Dongfeng |
| Drive configuration | 4×2 |
| Container volume | 5 m³ |
| Container material | Carbon steel |
| Wheelbase | 3,300 mm |
| Listed gross vehicle mass | 7,300 kg |
| Overall dimensions | 5,995 × 2,000 × 2,900 mm |

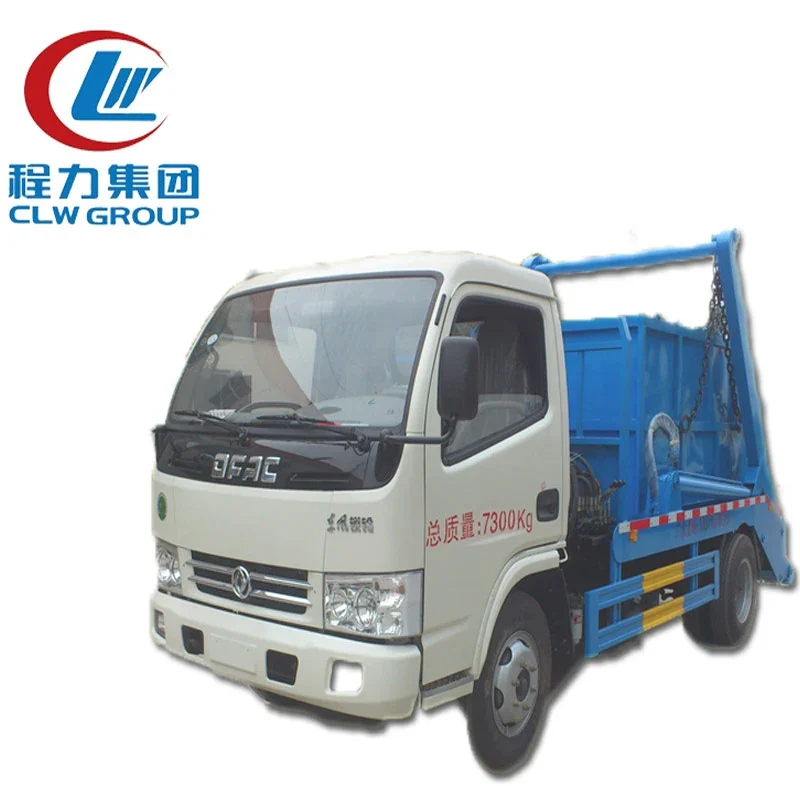

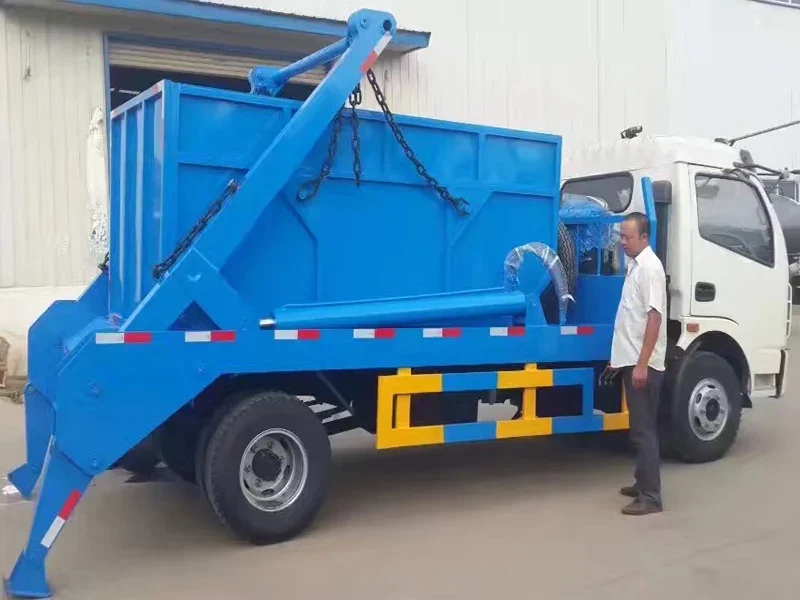

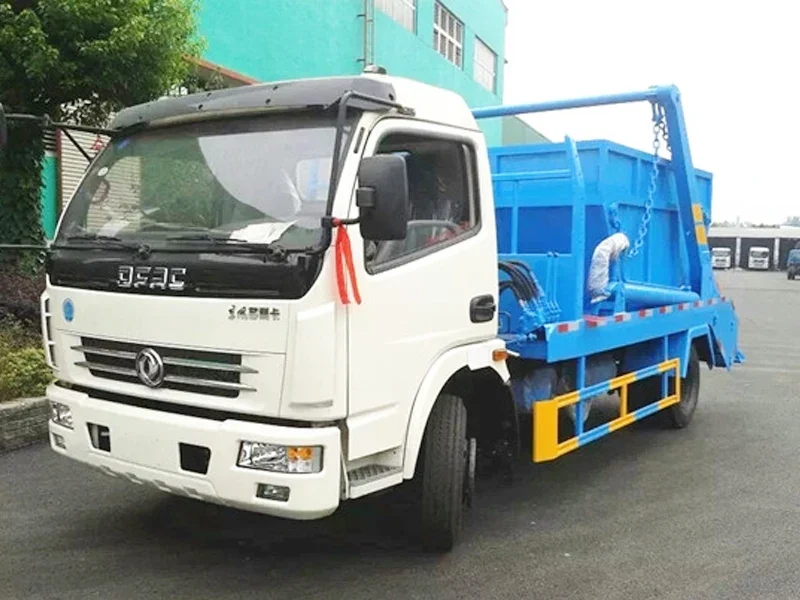

About the CLW Dongfeng 5 m³ Skip Loader
A Dongfeng skip-loader vehicle that lifts and transports a detachable waste container. The hydraulic lifting arrangement supports collection systems where bins remain at loading points and the vehicle returns to exchange or empty them.
Applications and operating scenarios
A skip-loader system allows containers to remain at collection locations while the vehicle serves other points. It is relevant to projects using removable bins rather than a permanently attached compaction body. Collection-point space and the container-exchange method are central to the brief.
How to read the specifications
Container volume describes space, not a permissible mass of waste. Confirm the container's lifting interfaces and the lift arrangement fitted to the proposed chassis. The published gross mass also needs to be read alongside the completed vehicle's equipment and container weights.
Selection and quotation checklist
Provide container drawings, material types and anticipated loaded masses. Request the lifting equipment's specification and the working-space requirements at each collection point. Confirm the exact number and type of containers included in the supply.
Reference scope
This guide uses the published Chengli / CLW vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
