Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Vehicle model | YZR5090GXFSG35/E6 |
| Chassis | EQ2110GSZ6DJ |
| Drive configuration | 4×4 |
| Water tank | 3,500 L |
| Pump duty | 30 L/s at 1.0 MPa |
| Wheelbase | 3,400 mm |
| Engine power | 112 kW |
| Overall dimensions | 6,000 × 2,100 × 3,060 mm |

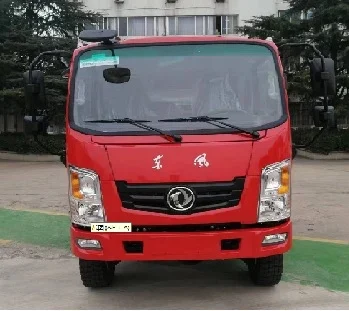

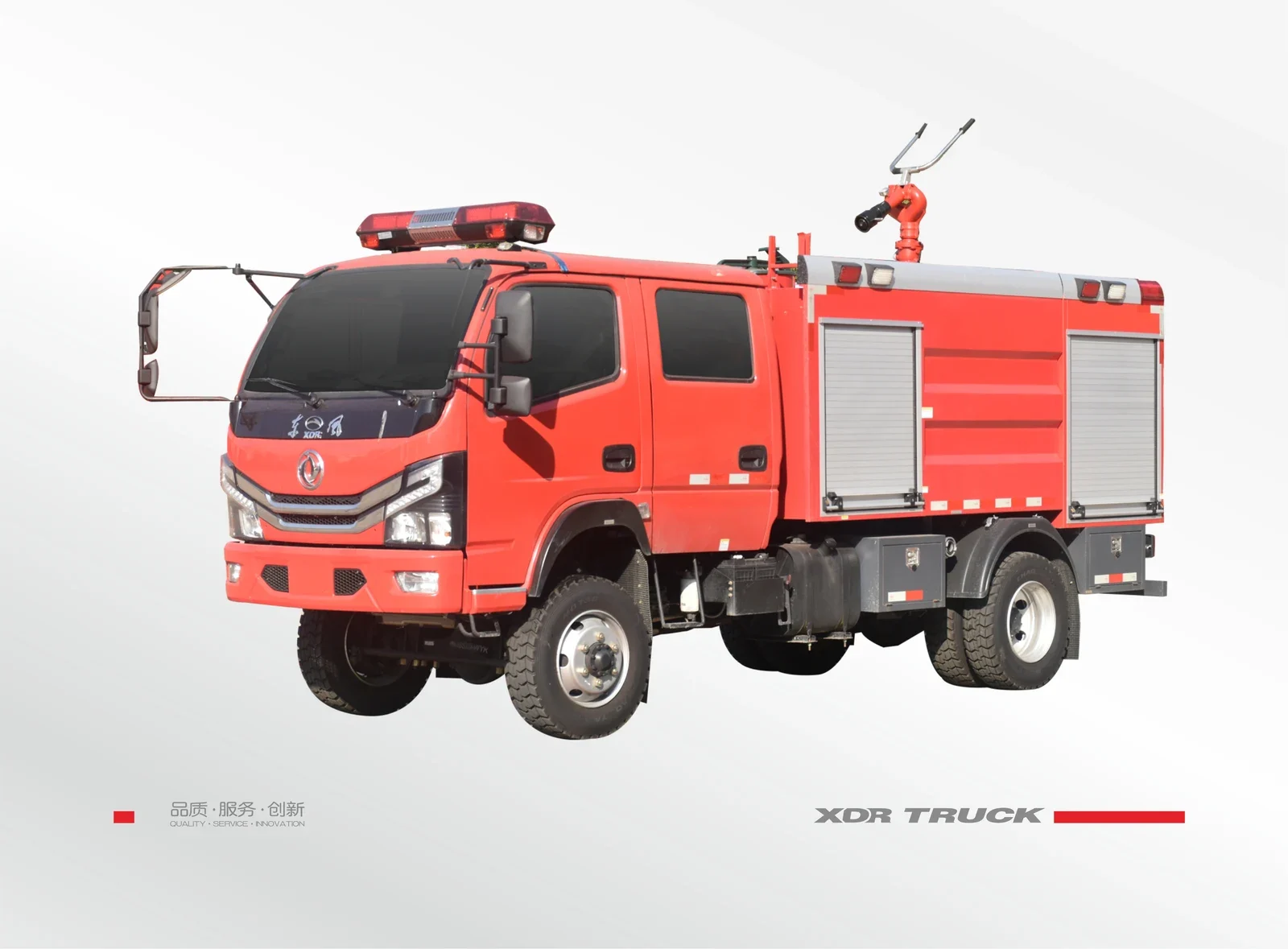

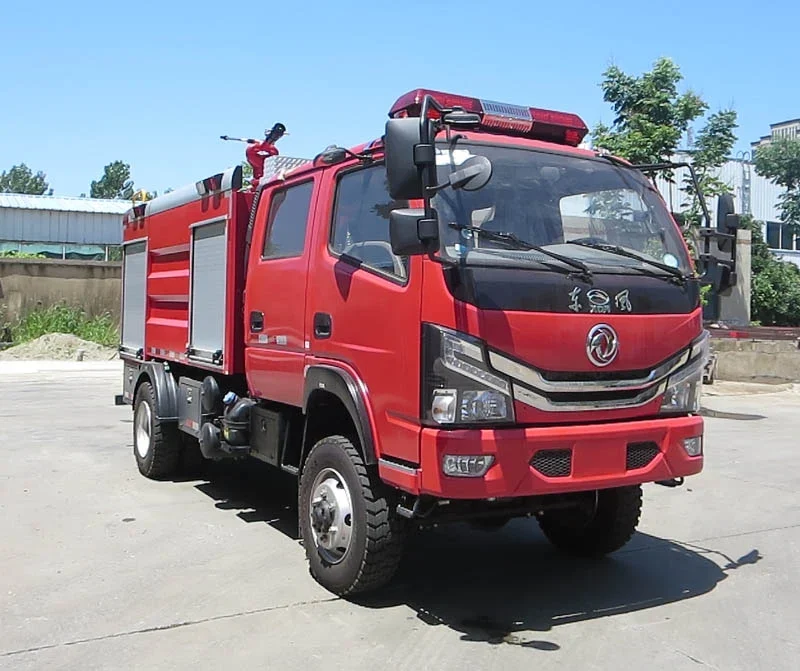

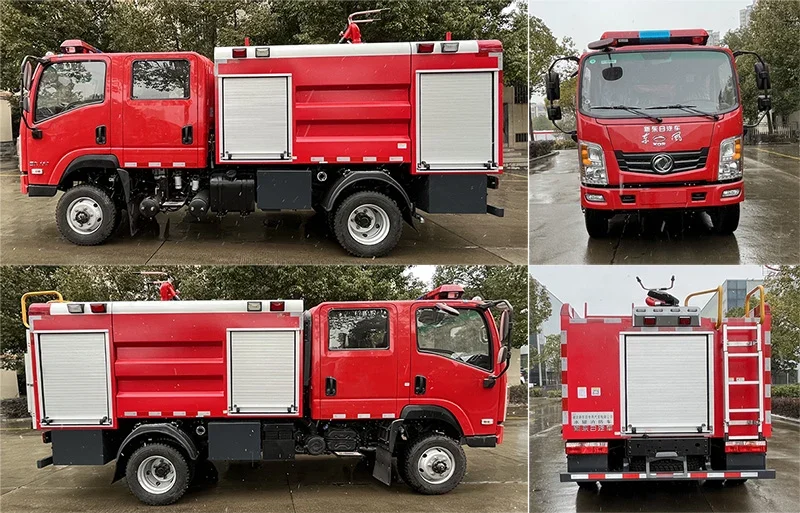

About the XDR Dongfeng 4×4 Forest Fire Truck
A Dongfeng-based 4×4 fire vehicle carrying 3,500 litres of water. The double-row cab, rear pump compartment and equipment lockers provide a reference configuration for fire-response projects requiring a relatively compact vehicle.
Applications and operating scenarios
This compact four-wheel-drive reference supports forest and rural response planning where access constraints influence vehicle choice. The intended terrain, staging areas and water sources should be reviewed by the responsible team. Four-wheel drive alone does not establish access to every route or operating condition.
How to read the specifications
The water volume, pump duty and vehicle dimensions provide a starting point for model comparison. Pump flow is tied to the listed pressure; it should not be treated as a constant at every operating point. Request the selected build's equipment and vehicle documentation.
Selection and quotation checklist
Provide terrain information, crew requirements, coupling standards and the intended pump duty. Ask for current photographs, equipment schedules and acceptance-test documentation. Review the final proposal against the destination fire service's requirements.
Reference scope
This guide uses the published Xindongri / XDR vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
