Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Model code | YZR5186TSYZ |
| Drive | 4×2 |
| Dimensions (L × W × H) | 12,000 × 2,550 × 3,990 mm |
| Accommodation capacity | 24 people; sleeping use |
| Fresh / wastewater tanks | 1,000 L / 500 L |
| Chassis model | ZZ5186XXYN711GF1 |

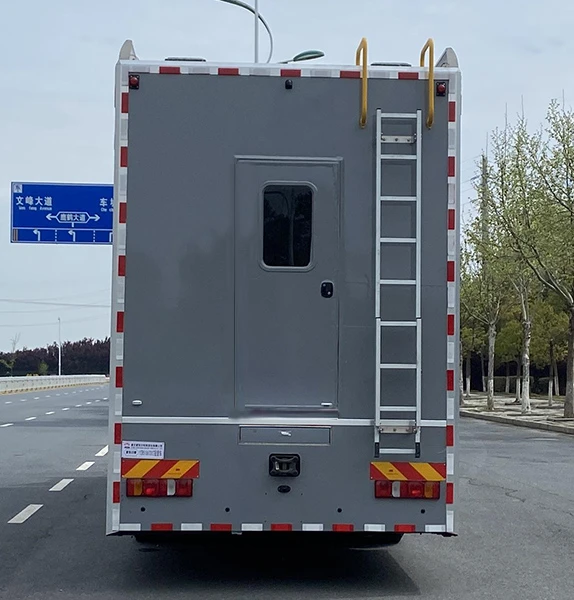

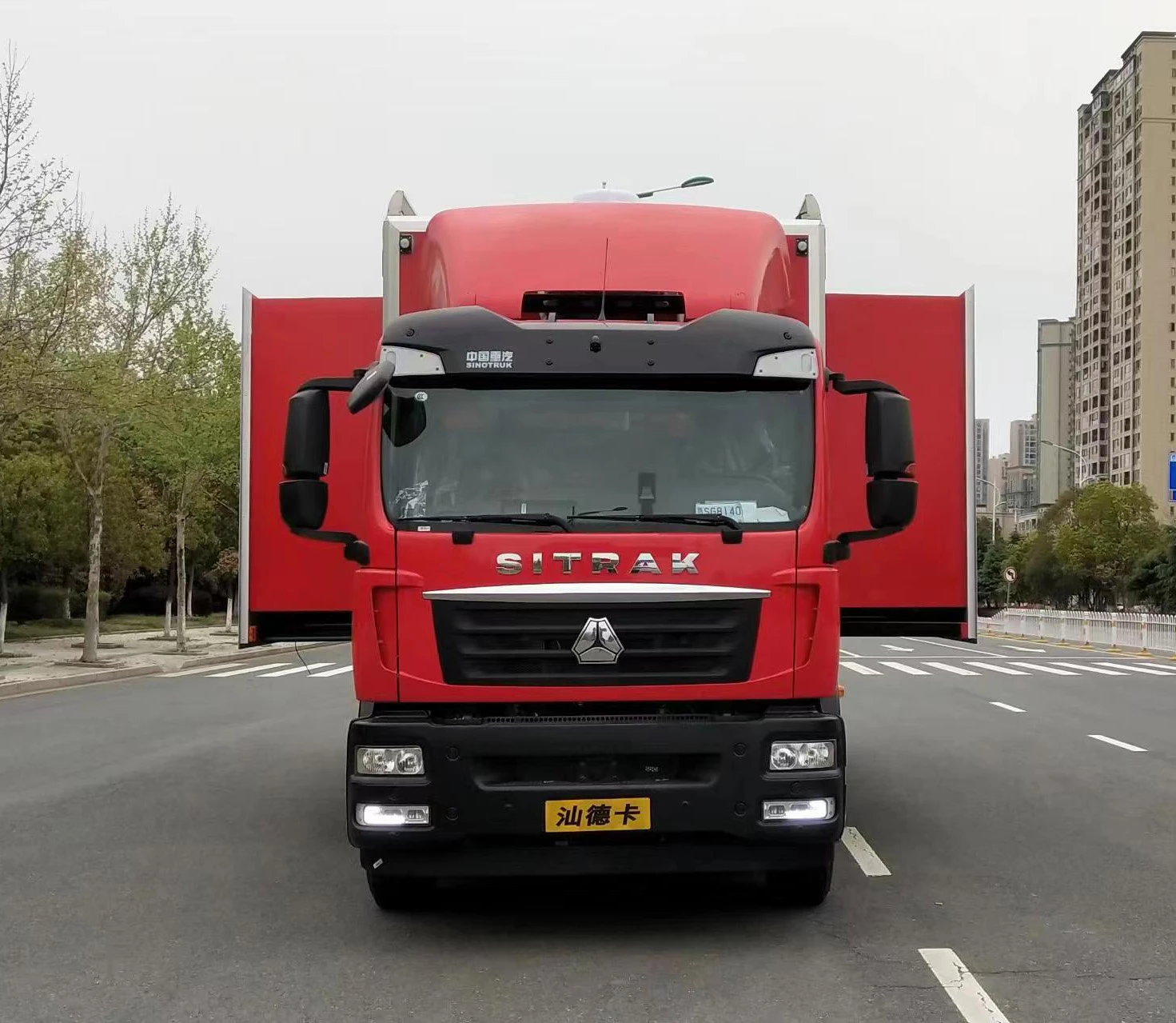

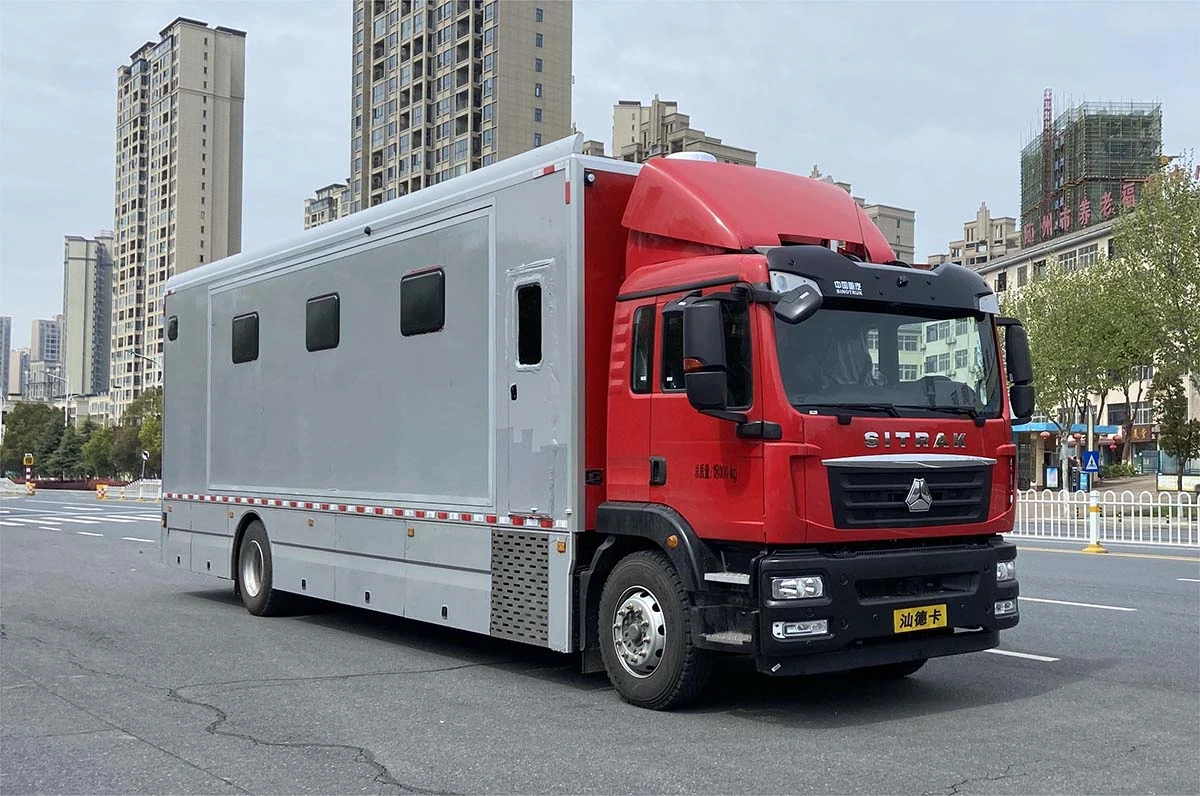

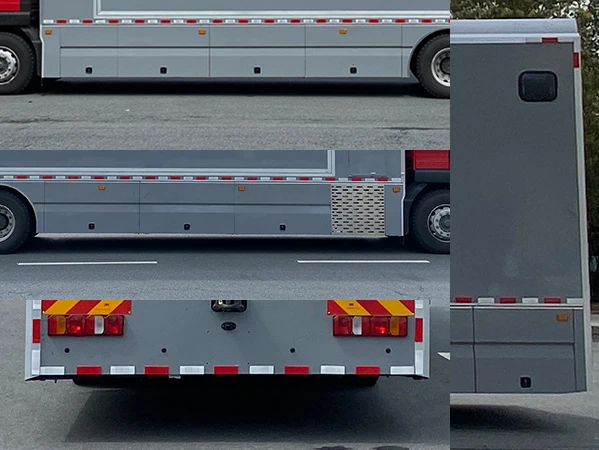

About the Emergency Accommodation Truck

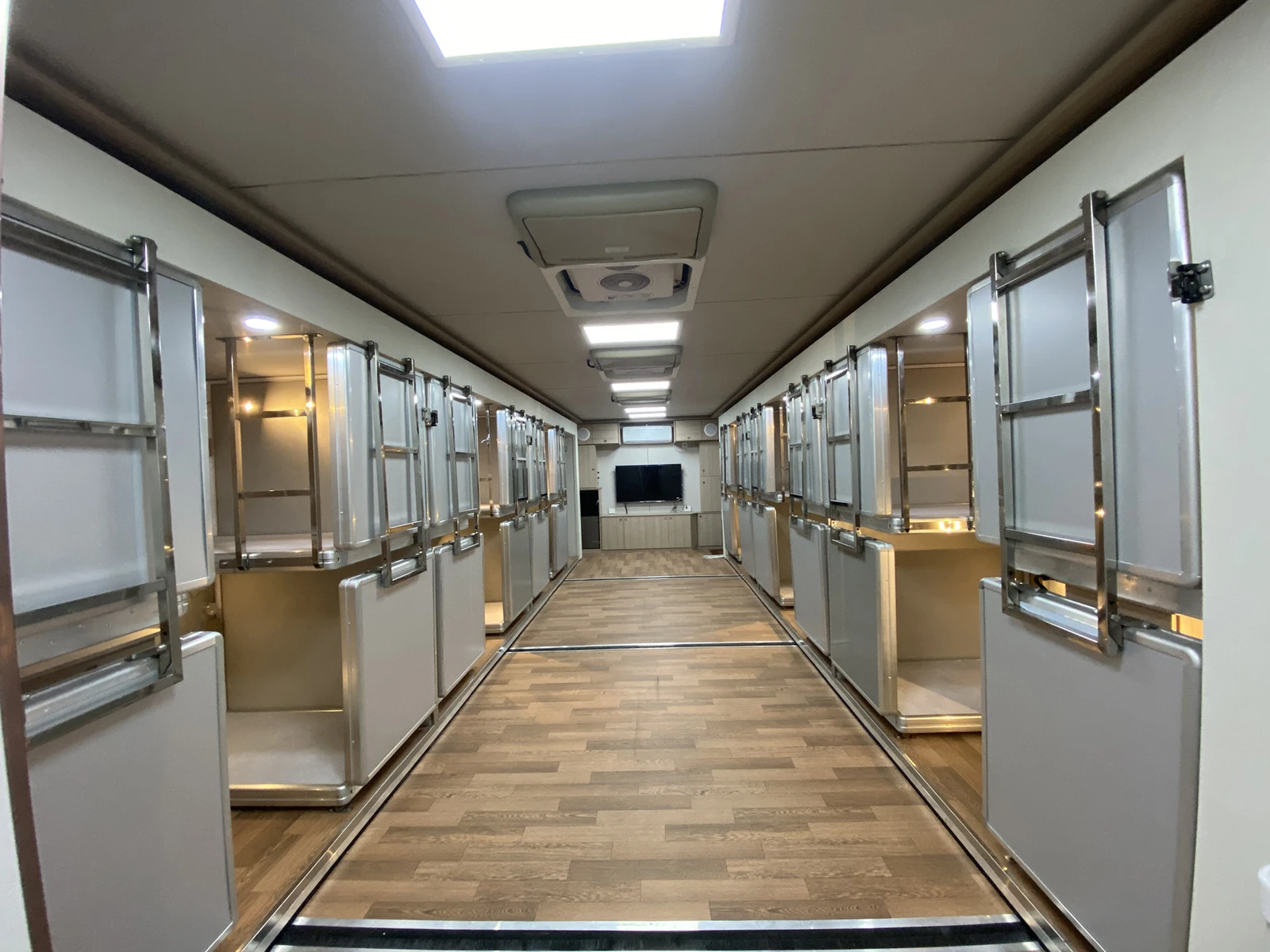

A Xindongri emergency-support vehicle on a SINOTRUK 4×2 chassis, intended to provide sleeping accommodation during prolonged field operations. The manufacturer lists a 24-person accommodation layout, water storage, wastewater storage and a generator. Accommodation capacity is not a statement of permitted passenger seating while travelling.
Applications and operating scenarios
This vehicle supports personnel who remain at a deployment site for extended periods. Planning starts with sleeping arrangements, shift patterns and the services available on site. It is a reference for emergency logistics and field-support accommodation, rather than an assumed passenger-transport solution.
How to read the specifications
Sleeping capacity is distinct from approved travel seating. Fresh-water and wastewater tanks also serve different needs and should not be combined into one capacity figure. Match the electrical load schedule and replenishment plan to the actual deployed equipment.
Selection and quotation checklist
Request an interior floor plan, current interior photographs and a complete utilities list. Identify ventilation, power connections, water replenishment and waste handling requirements. Confirm transport seating and approvals separately from the sleeping layout.
Reference scope
This guide uses the published Xindongri / XDR vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
