Technical specifications
Published reference data for the vehicle discussed in this guide. Confirm the selected build in the supplier’s specification.
| Parameter | Published value |
|---|---|
| Vehicle model | YZR5180GXFAP50/G6A |
| Chassis | ZZ5206N471GF5 |
| Drive configuration | 4×2 |
| Water tank | 4,000 L |
| Class A foam tank | 291 L |
| Class B foam tank | 686 L |
| Pump duty | 60 L/s at 1.0 MPa; 30 L/s at 2.0 MPa |
| Wheelbase | 4,700 mm |
| Engine power | 257 kW |

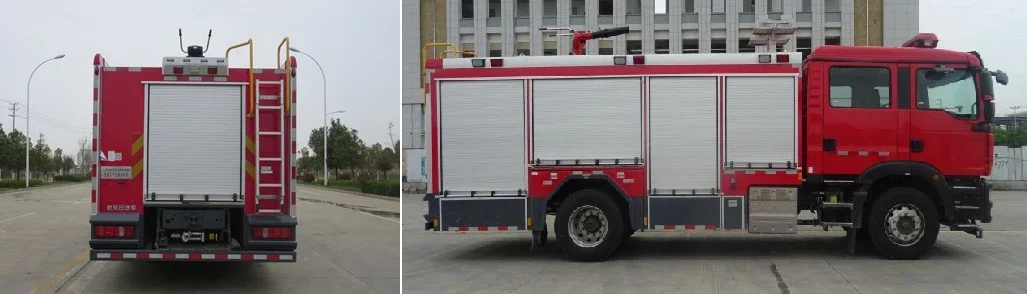

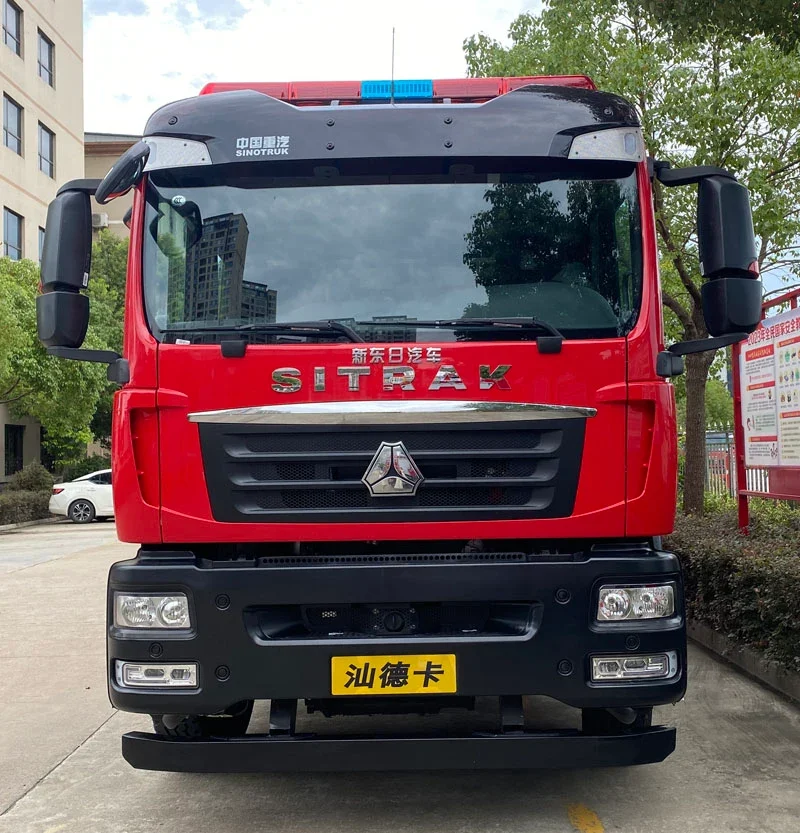

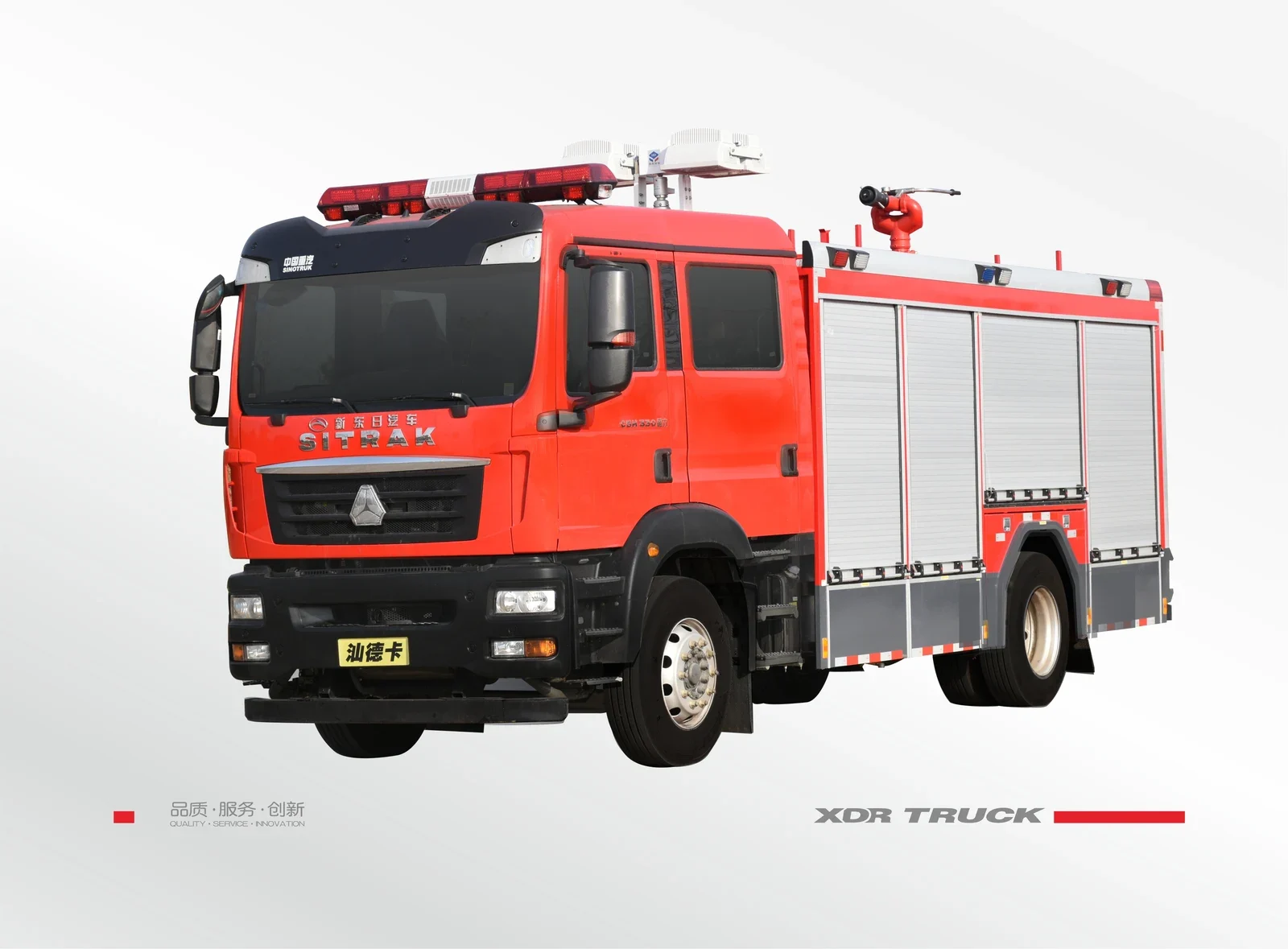

About the XDR SITRAK CAFS Fire Truck
A SITRAK-based fire appliance equipped with a compressed-air foam system, separate water and foam tanks, a winch and elevated lighting. The reference combines firefighting and selected support equipment in a double-row-cab vehicle.
Applications and operating scenarios
A compressed-air foam appliance is considered around the response organisation's foam strategy and equipment requirements. The separate water and foam tanks make the actual medium and intended use important procurement inputs. This reference also includes support equipment that should be listed explicitly in the final build.
How to read the specifications
The Class A and Class B foam tank values describe separate storage circuits. The two published pump duties represent different flow and pressure points and should remain paired correctly. Confirm the CAFS equipment, foam compatibility and interfaces with the supplier.
Selection and quotation checklist
Provide the required foam product specification, hose coupling standard and crew equipment list. Request a complete CAFS description and the agreed performance-test procedure. Confirm lighting, winch and other support equipment separately from the core water and foam system.
Reference scope
This guide uses the published Xindongri / XDR vehicle reference linked below. The technical values describe that reference, not every vehicle in the range. Final equipment, availability and destination requirements are confirmed for the quoted build.
